SL014972 Nrog Loj 360x480x118 mm Ob Chav Kab Tag Nrho Cov Cylindrical Cov Menyuam Bearing
Txheej txheem cej luam
SL0149 series ob kab tag nrho cov cylindrical cov menyuam bearings yog ib qho kev pom cov kabmob uas tuaj yeem txhawb nqa axial rog hauv ob qho tib si cov lus qhia nrog rau lub zog radial. Lub nplhaib sab nrauv muaj tav ntawm ob sab, yog axially sib cais, thiab tuav ua ke los ntawm kev tuav cov nplhaib. Lub nplhaib sab hauv muaj ib qho ntxiv hauv nruab nrab tav. Lub nplhaib tuav yuav tsum tsis txhob raug axial load.
Lub taub hau - 360 mm; Sab nraud txoj kab uas hla-480 hli; Dav-118 hli; Mass-62.1 kg;Cr=1790 kN;C0r=4450 kN; txwv ceev=730 1/min; Siv ceev=350 1/min.
Interchangeable bearing code: NNC 4972 V
Yam muaj feem xyuam: SL014972-A; SL014972-A-C3 Cylindrical cov menyuam bearings kuj tau npaj rau hauv Tshuag rau koj daim ntawv thov tshuab xav tau.
Specifications
| Tshooj NO. | SL014972-Ob chav Kab Tag Nrho Cov Cylindrical Cov Menyuam Bearing |
| Hom | INA ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |

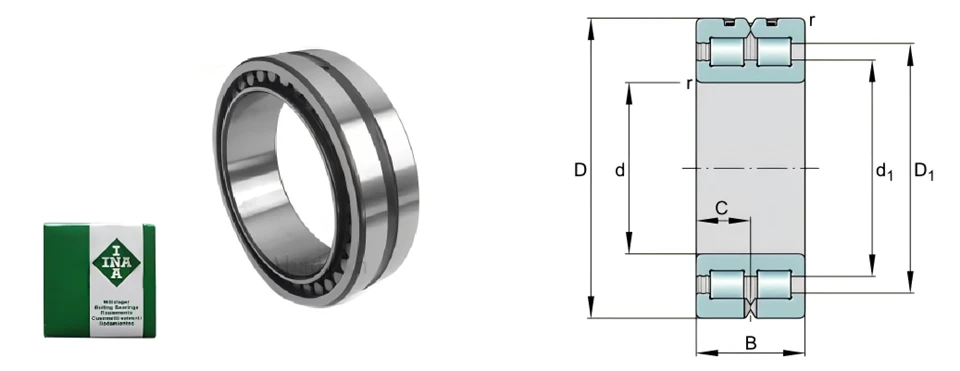

| Main Dimensions | 360 x 480 x 118 mm |
| d | 360 hli |
| D | 480 hli |
| B | 118 hli |
| rmin ua. | 3 hli |
| da | 404mm ib |
| Da | 4 37mm |
| C | 59mm ua |
| Cr | 1 790kn |
| C0r | 4450kn ua |
| Cur | 465kn ua |
| Txwv ceev | 730 1/min |
| Siv ceev | 350 1/min |
| M | 62.1kg ib |
Daim Ntawv Pov Thawj Peb tuaj yeem muab tau
