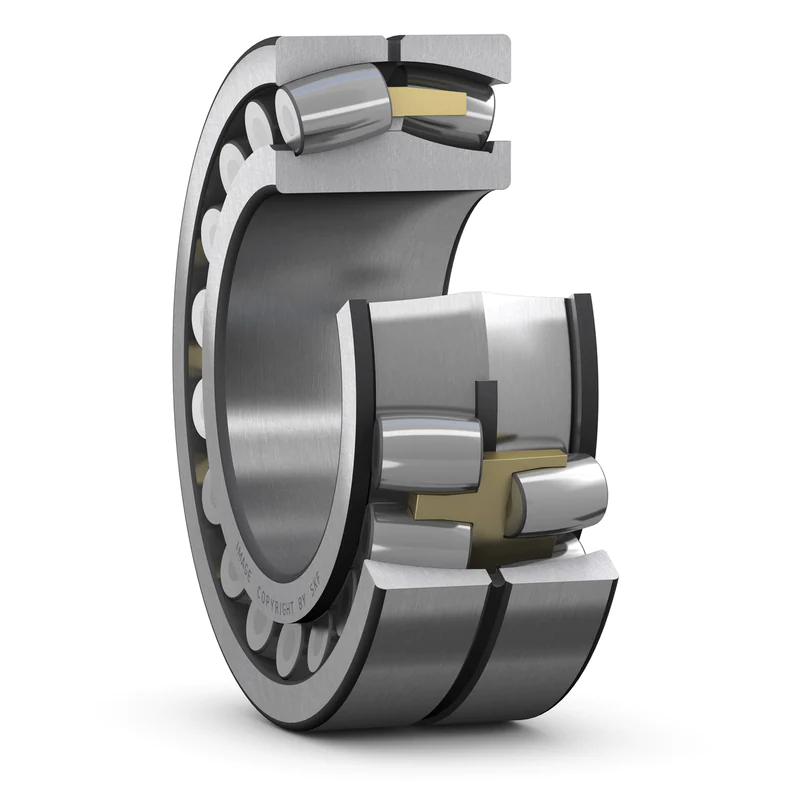

240/600BMB - Spherical Cov Menyuam Bearing
Txheej txheem cej luam:
Spherical Roller Bearing nrog Relubrication Nta; 2 kab; Cylindrical Bore hom; Lub taub hau: 600mm; Sab nraud txoj kab uas hla 870 mm; Dav 272 hli; C:8 502 kN; C0: 16 300 kN. Nyhav: 520 kg.
Nta:
1. Lub neej ua haujlwm ntev
2. Kev sib txhuam qis
3.High load-nqa
4.Relubrication
5. Ua kom tsis raug
6. Siab hnav tsis kam

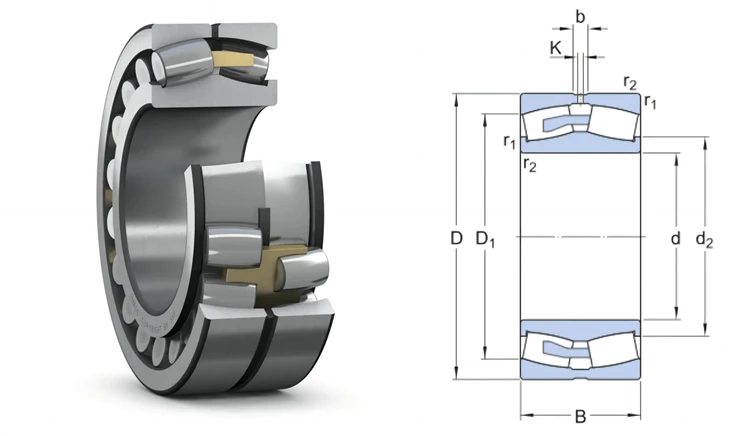

240/600BMB Specifications
| Dimensional Specifications/Calculation data | |
| d-Bore txoj kab uas hla | 600 hli |
| D-Sab nraud txoj kab uas hla | 8 70mm |
| B- Dav | 2 72mm |
| d2-Lub xub pwg txoj kab uas hla ntawm lub nplhaib puab | ≈682 mm |
| D1-Lub xub pwg / qhov tob ntawm lub nplhaib sab nraud | ≈784 mm |
| b- Dav ntawm lubrication zawj | 46.1mm ib |
| K-inch ntawm lubrication qhov | 15 hli |
| r1,2-Chamfer dimension | qis 6 mm |
| C-Basic dynamic load ntsuas | 8 502 kN |
| C0-Basic static load rating | 16 300 kN |
| Pu-Fatigue load txwv | 1 100 kN |
| Siv ceev | 20 r / min |
| Txwv ceev | 45 r / min |
| Pawg | 5 20kg |
Related SKF 240/600 BC spherical roller bearing kuj muaj nyob rau hauv Tshuag, Yog tias koj xav tau, thov hu rau peb.
Cov nram qab no txuas spherical roller bearing kuj muaj nyob rau hauv Tshuag!
| 239/500 CA/W33 | 500x670x128 |
| 239/500 CAJ/W33 | 500x670x128 |
| 230/500 CA/W33 | 500x720x167 |
| 230/500 CAK/W33 | 500x720x167 |
| 240/500 ECA/W33 | 500x720x218 |
| 240/500 ECAK30/W33 | 500x720x218 |
| 231/500 CA/W33 | 500x830x264 |
| 231/500 CAJ/W33 | 500x830x264 |
| 241/500 ECA/W33 | 500x830x325 |
| 241/500 ECAK30/W33 | 500x830x325 |
| 232/500 CA/W33 | 500x920x336 |
| 232/500 CAJ/W33 | 500x920x336 |
| 248/530 CAK30MA/W20 | 530x650x118 |
| 239/530 CA/W33 | 530x710x136 |
| 239/530 CAJ/W33 | 530x710x136 |
| 230/530 CA/W33 | 530x780x185 |
| 230/530 CAJ/W33 | 530x780x185 |
| 240/530 ECA/W33 | 530x780x250 |
| 240/530 ECAK30/W33 | 530x780x250 |
| 240/530 BC | 530x780x250 |
| 231/530 CA/W33 | 530x870x272 |
| 231/530 CAJ/W33 | 530x870x272 |
| 241/530 ECA/W33 | 530x870x335 |
| 241/530 ECAK30/W33 | 530x870x335 |
| 232/530 CA/W33 | 530x980x355 |
| 232/530 CAJ/W33 | 530x980x355 |
| 239/560 CA/W33 | 560x750x140 |
| 239/560 CAJ/W33 | 560x750x140 |
| 230/560 CA/W33 | 560x820x195 |
| 230/560 CAJ/W33 | 560x820x195 |
| 240/560 BC | 560x820x258 |
| 240/560 ECA/W33 | 560x820x258 |
| 240/560 ECAK30/W33 | 560x820x258 |
| 231/560 CA/W33 | 560x920x280 |
| 231/560 CAJ/W33 | 560x920x280 |
| 241/560 ECJ/W33 | 560x920x355 |
| 241/560 ECK30J/W33 | 560x920x355 |
| 232/560 CA/W33 | 560x1030x365 |
| 232/560 CAJ/W33 | 560x1030x365 |
| 239/600 CA/W33 | 600x800x150 |
| 239/600 CAJ/W33 | 600x800x150 |
| 230/600 CA/W33 | 600x870x200 |
| 230/600 CAJ/W33 | 600x870x200 |
| 240/600 BC | 600x870x272 |
| 240/600 ECA/W33 | 600x870x272 |
| 240/600 ECAK30/W33 | 600x870x272 |
| 231/600 CA/W33 | 600x980x300 |
| 231/600 CAJ/W33 | 600x980x300 |
| 241/600 ECA/W33 | 600x980x375 |
| 241/600 ECAK30/W33 | 600x980x375 |
| 232/600 CA/W33 | 600x1090x388 |
| 238/630 CAMA/W20 | 630x780x112 |
| 239/630 CA/W33 | 630x850x165 |
| 239/630 CAJ/W33 | 630x850x165 |
| 230/630 CA/W33 | 630x920x212 |
| 230/630 CAJ/W33 | 630x920x212 |
| 240/630 ECJ/W33 | 630x920x290 |
| 240/630 ECK30J/W33 | 630x920x290 |
| 240/630 BC | 630x920x290 |
| 231/630 CA/W33 | 630x1030x315 |
| 231/630 CAJ/W33 | 630x1030x315 |
| 241/630 ECA/W33 | 630x1030x400 |
| 241/630 ECAK30/W33 | 630x1030x400 |
| 238/670 CAMA/W20 | 670x820x112 |
| 248/670 CAMA/W20 | 670x820x150 |
| 239/670 CA/W33 | 670x900x170 |
| 239/670 CAJ/W33 | 670x900x170 |
| 230/670 CA/W33 | 670x980x230 |
| 230/670 CAJ/W33 | 670x980x230 |
| 240/670 BC | 670x980x308 |
| 240/670 ECA/W33 | 670x980x308 |
| 240/670 ECAK30/W33 | 670x980x308 |
| 231/670 CA/W33 | 670x1090x336 |
| 231/670 CAJ/W33 | 670x1090x336 |
| 241/670 ECA/W33 | 670x1090x412 |
| 241/670 ECAK30/W33 | 670x1090x412 |
| 238/710 CAMA/W20 | 710x870x118 |
| 239/710 CA/W33 | 710x950x180 |
| 239/710 CAJ/W33 | 710x950x180 |
| 249/710 CA/W33 | 710x950x243 |
| 249/710 CAJ 30/W33 | 710x950x243 |
| 230/710 CA/W33 | 710x1030x236 |
| 230/710 CAJ/W33 | 710x1030x236 |
| 240/710 ECA/W33 | 710x1030x315 |
| 240/710 ECAK30/W33 | 710x1030x315 |
| 240/710 BC | 710x1030x315 |
| 231/710 CA/W33 | 710x1150x345 |
| 231/710 CAJ/W33 | 710x1150x345 |
| 241/710 ECA/W33 | 710x1150x438 |
| 241/710 ECAK30/W33 | 710x1150x438 |
| 232/710 CA/W33 | 710x1280x450 |
| 232/710 CAJ/W33 | 710x1280x450 |
| 238/750 CAMA/W20 | 750x920x128 |
| 239/750 CA/W33 | 750x1000x185 |
| 239/750 CAJ/W33 | 750x1000x185 |
| 249/750 CA/W33 | 750x1000x250 |
| 249/750 CAJ 30/W33 | 750x1000x250 |
| 230/750 CA/W33 | 750x1090x250 |
| 230/750 CAJ/W33 | 750x1090x250 |
| 240/750 ECA/W33 | 750x1090x335 |
| 240/750 ECAK30/W33 | 750x1090x335 |
| 240/750 BC | 750x1090x335 |
| 231/750 CA/W33 | 750x1220x365 |
| 231/750 CAJ/W33 | 750x1220x365 |
| 241/750 ECA/W33 | 750x1220x475 |
| 241/750 ECAK30/W33 | 750x1220x475 |
| 248/800 CAK30MA/W20 | 800x980x180 |
| 239/800 CA/W33 | 800x1060x195 |
| 239/800 CAJ/W33 | 800x1060x195 |
| 249/800 CA/W33 | 800x1060x258 |
| 230/800 CA/W33 | 800x1150x258 |
| 230/800 CAK/W33 | 800x1150x258 |
| 240/800 ECA/W33 | 800x1150x345 |
| 240/800 BC | 800x1150x345 |
| 231/800 CA/W33 | 800x1280x375 |
| 231/800 CAJ/W33 | 800x1280x375 |
| 241/800 ECA/W33 | 800x1280x475 |
| 232/800 CAF/W33 | 800x1420x488 |
| 232/800 CAKF/W33 | 800x1420x488 |
| 238/850 CAKMA/W20 | 850x1030x136 |
| 238/850 CAMA/W20 | 850x1030x136 |
| 239/850 CA/W33 | 850x1120x200 |
| 239/850 CAJ/W33 | 850x1120x200 |
| 249/850 CA/W33 | 850x1120x272 |
| 249/850 CAJ 30/W33 | 850x1120x272 |
| 230/850 CA/W33 | 850x1220x272 |
| 230/850 CAJ/W33 | 850x1220x272 |
| 240/850 BC | 850x1220x365 |
| 240/850 ECA/W33 | 850x1220x365 |
| 240/850 ECAK30/W33 | 850x1220x365 |
| 241/850 ECAF/W33 | 850x1360x500 |
| 241/850 ECAK30F/W33 | 850x1360x500 |
| 232/850 CAF/W33 | 850x1500x515 |
| 248/900 CAMA/W20 | 900x1090x190 |
| 239/900 CA/W33 | 900x1180x206 |
| 239/900 CAJ/W33 | 900x1180x206 |
| 230/900 CA/W33 | 900x1280x280 |
| 230/900 CAJ/W33 | 900x1280x280 |
| 240/900 ECA/W33 | 900x1280x375 |
| 240/900 ECAK30/W33 | 900x1280x375 |
| 240/900 Nws | 900x1280x375 |
| 241/900 ECAF/W33 | 900x1420x515 |
| 241/900 ECAK30F/W33 | 900x1420x515 |
| 239/950 CA/W33 | 950x1250x224 |
| 239/950 CAJ/W33 | 950x1250x224 |
| 249/950 CA/W33 | 950x1250x300 |
| 249/950 CAJ 30/W33 | 950x1250x300 |
| 230/950 CA/W33 | 950x1360x300 |
| 230/950 CAJ/W33 | 950x1360x300 |
| 240/950 BC | 950x1360x412 |
| 241/950 ECAF/W33 | 950x1500x545 |
| 241/950 ECAK30F/W33 | 950x1500x545 |
| 238/1000 CAKMA/W20 | 1000x1220x165 |
| 249/1000 CA/W33 | 1000x1320x315 |
| 240/1000 CAF/W33 | 1000x1420x412 |
| 240/1000 CAK30F/W33 | 1000x1420x412 |
| 231/1000 CAF/W33 | 1000x1580x462 |
| 231/1000 CAKF/W33 | 1000x1580x462 |
| 241/1000 ECAF/W33 | 1000x1580x580 |
| 241/1000 ECAK30F/W33 | 1000x1580x580 |
| 239/1060 CAF/W33 | 1060x1400x250 |
| 239/1060 CAKF/W33 | 1060x1400x250 |
| 249/1060 CAF/W33 | 1060x1400x335 |
| 249/1060 CAK30F/W33 | 1060x1400x335 |
| 240/1060 CAF/W33 | 1060x1500x438 |
| 240/1060 CAK30F/W33 | 1060x1500x438 |
| 249/1120 CAF/W33 | 1120x1460x335 |
| 240/1120 CAF/W33 | 1120x1580x462 |
| 240/1120 CAK30F/W33 | 1120x1580x462 |
| 240/1120 BC | 1120x1580x462 |
| 238/1180 CAKFA/W20 | 1180x1420x180 |
| 239/1180 CAV/W33 | 1180x1540x272 |
| 239/1180 CAKF/W33 | 1180x1540x272 |
| 249/1180 CAF/W33 | 1180x1540x355 |
| 240/1180 CAK30F/W33 | 1180x1660x475 |
| 230/1250 CAF/W33 | 1250x1750x375 |
| 230/1250 CAKF/W33 | 1250x1750x375 |
| 249/1320 CAF/W33 | 1320x1720x400 |
| 249/1320 CAK30F/W33 | 1320x1720x400 |
| 248/1500 CAK30FA/W20 | 1500x1820x315 |
| 248/1800 CAK30FA/W20 | 1800x2180x375 |
