20224-K{2}}MB-C3 Spherical Barrel Cov Menyuam Bearing Loj 120x215x40 mm
Txheej txheem cej luam
Suffix meaning:
K-taper 1:12 tapered.
MB-Cov khoom tooj dag.
C3-C3 radial sab hauv clearance
Cov kabmob no yog ib qho - kab, tus kheej -aligning bearing hom nrog tapered bore; Nws suav nrog cov nplhaib sab nraud nrog cov kab sib tw sib tw, cov nplhaib sab hauv nrog ob lub tav thiab ib lub nplhaib tapered, nrog rau cov thoob chais nrog tawb. Tsis sib cais; Nws yog qhov tsim nyog tshwj xeeb yog qhov siab radial shocks- hom loads tshwm sim, thiab misalignments yuav tsum tau them nyiaj, Tsuas muaj qhov qis axial load- nqa lub peev xwm.
Lub taub hau - 120 mm; Sab nraud txoj kab uas hla-215 hli; Dav-40 hli; Mass-6.41 kg;Cr=305 kN;Cor=415 kN;Cur=38.5 kN.
Nws tuaj yeem hloov pauv nrog 20238KMBC3; zoo sib xws code no. 20238-MB;20238 C;20238 kuj muaj nyob rau hauv ex- Tshuag.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | 20224-K-MB-C3 - Spherical Barrel Cov Menyuam Bearing |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |
| Main Dimensions | 120 x 215 x 40 mm |
| d | 120 hli |
| D | 215 hli |
| B | 40 mm |
| da min | 132 hli |
| Da max | 203mm ua |
| rau max | 2.1 hli |
| rmin ua | 2.1 hli |
| Cr | 305kn ua |
| C0r | 415kn ua |
| Cur | 38.5kn ua |
| Txwv ceev | 3350 1/min |
| M | 6 ,41kg |

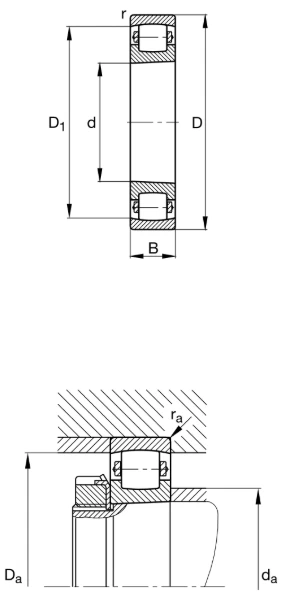

Bearing Pictures Qhia
