Khoom khoom
Muaj 6689 pcs
Yam No.6316/C3VL0241
Cov ntsiab lus technical (C3VL0241)
C3=Internal Clearance Loj dua li qub.
VL0241=(Segment Precision, Code 10)=Electrical
Kuj: Min. 50MΩ, tawg voltage: Max. Kev khiav hauj lwm Voltage 1.000v DC.

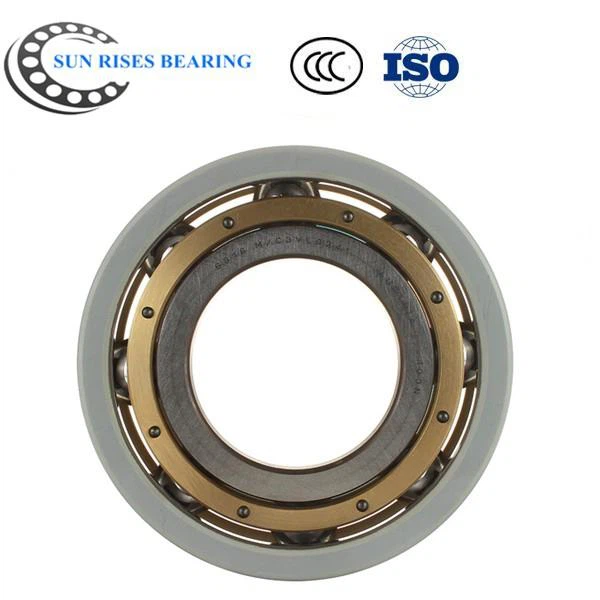

6316/C3VL0241 bearing drawing thiab technical data:
Lub npe 6316/0241 Sab hauv (d) mm 80 Sab nraud (D) mm 170 Dav (B) mm 39 Qhov hnyav (kg) 3.69 Npog Cylindrical Bore foob Tsis Muaj Seal Cage Hom S - Hlau lossis Standard Cage Kev hloov kho sab nraud Tsis Pairing Radial Internal Ua Si C3 Internal Play (siab dua Cn) Precision 10 Kev tawg Voltage 1000v Lubrication Txheem Lubrication Thaum tshav kub kub Stabilization Tsis muaj cua sov stabilization - kub txog li 120 degree Kev kho mob tshwj xeeb Tsis Muaj Kev Kho Mob Tshwj Xeeb 6316 / C3VL0241 cov khoom qhia:
ntxiv
npe 6316/C3VL0241
6316/C3VL0241 tuaj yeem pom tau tias yog kev hloov kho rau tus qauv uas tsis yog-insulated 6316/C3 pob bearing nrog kev tiv thaiv hluav taws xob tam sim no. Cov lus qhia tshwj xeeb yog li zoo ib yam rau 6316 / C3 sib sib zog nqus groove pob bearing.
Cov lus piav qhia 6316/C3VL0241
VL0241: Sab nrauv ntawm lub nplhaib sab nrauv coated nrog aluminium oxide. Lub txheej yog kaw nrog ib tug resin los tiv thaiv cov conductive los ntawm dej thiab ya raws. Cov txheej txheem no tuaj yeem tiv taus qhov hluav taws xob mus txog 1.000 V DC.
C3: Internal clearance ntau dua li qub. Qhov kev tshem tawm sab hauv ntxiv tso cai rau kev nthuav dav vim kev kub ceev lossis kub.
Vim li cas thiaj siv INSOCOAT hluav taws xob insulated bearings?
Feem ntau, nws yog ib qho nyuaj rau tshem tawm qhov ua rau hluav taws xob voltage nyob rau hauv ib tug bearing. Nyob rau hauv cov xwm txheej tsis zoo, qhov kev hla ntawm hluav taws xob tam sim no ua rau kev puas tsuaj rau txoj kev sib tw thiab cov ntsiab lus dov nrog rau kev degradation ntawm cov roj nplua nyeem. Uas yuav ua rau ntxov ntxov, npaj txhij txog tsis ua hauj lwm ntawm lub cev muaj zog los yog generator.
Daim ntawv thov
Muaj hluav taws xob motors
Log teeb thiab traction motors (rail tsheb)
Kev xa hluav taws xob
Generators (cua zog)
Extended INSOCOAT bearings
| Lub npe | Thawj qhov loj me | Basic load ntsuam xyuas | Fatique load txwv | Kev ntsuas ceev | ||||
| dynamic | zoo li qub | Siv ceev | Txwv ceev | |||||
| d | D | B | C | C0 | Pu | |||
| mm | kN kev | kN kev | r / min | |||||
| 6314/0241 | 70 | 150 | 35 | 104 | 68 | 2.75 | 9500 | 6300 |
| 6314 AWV 131 | 70 | 150 | 35 | 104 | 68 | 2.75 | 9500 | 9000 |
| 6315 M3VL0241 | 75 | 160 | 37 | 114 | 76.5 | 3 | 9000 | 8000 |
| 6315/0241 | 75 | 160 | 37 | 114 | 76.5 | 3 | 9000 | 5600 |
| 6215/3VL0241 | 75 | 130 | 25 | 68.9 | 49 | 2.04 | 10000 | 6700 |
| 6216/3VL0241 | 80 | 140 | 26 | 72.8 | 55 | 2.2 | 9500 | 6000 |
| 6316 M/C3VL0241 | 80 | 170 | 39 | 124 | 86.5 | 3.25 | 8500 | 7500 |
| 6316/0241 | 80 | 170 | 39 | 124 | 86.5 | 3.25 | 8500 | 5300 |
| 6317/0241 | 85 | 180 | 41 | 133 | 96.5 | 3.55 | 8000 | 5000 |
| 6217/0241 | 85 | 150 | 28 | 87.1 | 64 | 2.5 | 9000 | 5600 |
| 6317 AWV 131 | 85 | 180 | 41 | 133 | 96.5 | 3.55 | 8000 | 7500 |
| 6318/0241 | 90 | 190 | 43 | 143 | 108 | 3.8 | 7500 | 4800 |
| 6318 AWV 131 | 90 | 190 | 43 | 143 | 108 | 3.8 | 7500 | 7000 |
| 6218/0241 | 90 | 160 | 30 | 101 | 73.5 | 2.8 | 8500 | 5300 |
| 6319 AWV 131 | 95 | 200 | 45 | 153 | 118 | 4.15 | 7000 | 6300 |
| 6219/3VL0241 | 95 | 170 | 32 | 114 | 81.5 | 3 | 8000 | 5000 |
| 6219 M/C3VL0241 | 95 | 170 | 32 | 114 | 81.5 | 3 | 8000 | 5000 |
| 6319/0241 | 95 | 200 | 45 | 153 | 118 | 4.15 | 7000 | 4500 |
| 6320/3VL0241 | 100 | 215 | 47 | 174 | 140 | 4.75 | 6700 | 4300 |
| 6220/3VL0241 | 100 | 180 | 34 | 127 | 93 | 3.35 | 7500 | 4800 |
| 6320 M / C3VL0241 | 100 | 215 | 47 | 174 | 140 | 4.75 | 6700 | 6000 |
| 6222/3VL0241 | 110 | 200 | 38 | 151 | 118 | 4 | 6700 | 4300 |
| 6222 M/C3VL0241 | 110 | 200 | 38 | 151 | 118 | 4 | 6700 | 6300 |
| 6322 M / C3VL0241 AWV | 110 | 240 | 50 | 203 | 180 | 5.7 | 6000 | 5300 |
| 6322/0241 | 110 | 240 | 50 | 203 | 180 | 5.7 | 6000 | 3800 |
| 6324 M / C3VL2071 AWV | 120 | 260 | 55 | 208 | 186 | 5.7 | 5600 | 5000 |
| 6324/2071 1 | 120 | 260 | 55 | 208 | 186 | 5.7 | 5600 | 3400 |
| 6224/0241 | 120 | 215 | 40 | 146 | 118 | 3.9 | 6300 | 4000 |
| 6326 M/C3VL2071 | 130 | 280 | 58 | 229 | 216 | 6.3 | 5000 | 4500 |
| 6226/3VL2071 | 130 | 230 | 40 | 156 | 132 | 4.15 | 5600 | 3600 |
| 6326/3VL2071 | 130 | 280 | 58 | 229 | 216 | 6.3 | 5000 | 3200 |
| 6328/2071 | 140 | 300 | 62 | 251 | 245 | 7.1 | 4800 | 3000 |
| 6328 AWV 13 | 140 | 300 | 62 | 251 | 245 | 7.1 | 4800 | 4300 |
| 6228/3VL2071 | 140 | 250 | 42 | 165 | 150 | 4.55 | 5300 | 3400 |
| 6330 M / C3VL2071 | 150 | 320 | 65 | 276 | 285 | 7.8 | 4300 | 4000 |
| 6230/3VL2071 | 150 | 270 | 45 | 174 | 166 | 4.9 | 5000 | 3200 |
| 6330/2071 | 150 | 320 | 65 | 276 | 285 | 7.8 | 4300 | 2800 |
| 6332 M / C3VL2071 AWV | 160 | 340 | 68 | 276 | 285 | 7.65 | 4000 | 3800 |
| 6334 M / C3VL 2071 | 170 | 360 | 72 | 312 | 340 | 8.8 | 3800 | 3400 |
| 6336 M / C3VL 2071 | 180 | 380 | 75 | 351 | 405 | 10.4 | 3600 | 3200 |
