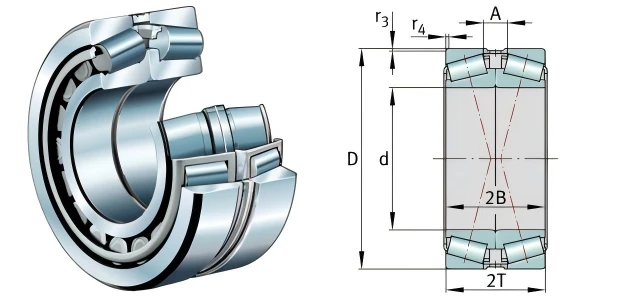

30240-XL-DF-A550-600 Nrog Loj 200x360x116 mm Paired Tapered Cov Menyuam Bearing Set
Txheej txheem cej luam
Paired ob kab tapered menyuam bearing teeb tsim; Ib txwm (ISO 492: 2014) chav kawm kam rau ua; Matched X kev npaj. Yuav siv tau ntawm kev khiav hauj lwm kub ntawm -30℃mus rau +200℃.Sheet steel tawb.
A550-600-Axial internal clearance ntawm 550 thiab 600 µm
XL-X-lub neej
Lub taub hau - 200 mm; Sab nraud txoj kab uas hla-360 hli; Dav-116 hli; Mass-52.9 kg;Cr=1540 kN;C0r=2120 kN;Cur=260 kN.
Yuav interchangeable nrog30240-A-DF-A550-600, 30240-A-N11CA-A550-600.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | 30240-XL-DF-A550-600- Paired Tapered Cov Menyuam Bearing Set |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |
| Main Dimensions | 200 x 360 x 116 mm |
| d | 200 hli |
| D | 360 hli |
| 2B | 116 hli |
| 2T | 128 hli |
| da max | 237mm ua |
| Da max | 342mm ua |
| r 3, 4m | 4 hli |
| Cr | 1 540 kn |
| C0r | 2 120kn |
| Cur | 260kn ua |
| M | 5 2,9kq |
