32240-A-J30PC Nrog Loj 200x360x104 mm Tapered Cov Menyuam Bearing
Txheej txheem cej luam
322 series Ib leeg -kab tapered menyuam bearings; Qhov loj me raws li DIN 720, cov qauv sib cais; Sheet steel tawb, qhov rais tawb, cov menyuam- taw qhia; Yuav siv tau ntawm kev khiav hauj lwm kub ntawm -30℃rau +200℃.Normal (ISO 492:2014) kam rau ua
Lub taub hau - 200 mm; Sab nraud txoj kab uas hla-360 hli; Dav-104 hli; Mass-42.9 kg;Cr=1320 kN;C0r=2080 kN;Cur=229 kN.
Ntxiv 32240; 32240-XL-DF-J30PC-A500-550, 30240-A-N11CA-A550-600; 32240-XL; 32240-XL-P5; 32240-J2; 32240JR kuj muaj nyob rau hauv Tshuag.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | 32240-A-J30PC-Tapered Cov Menyuam Bearing |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |
| Main Dimensions | 200 x 360 x 104 mm |
| d | 200 hli |
| D | 360 hli |
| B | 98mm ib |
| C | 82mm ua |
| T | 104 hli |
| da max | 2 26mm |
| Da max | 3 02mm |
| r1,2 nqi | 5 hli |
| r 3, 4m | 4 hli |
| Cr | 1 320 kNv |
| C0r | 2 080kn |
| Cur | 229kn ua |
| M | 42,9kg :ua |

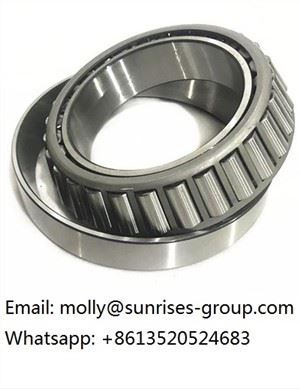

Daim duab ntawm Tapered Cov Menyuam Bearing
