32048-X-N11CA-A450-500 Nrog Loj 240x360x152 mm Matched Pairs Tapered Cov Menyuam Bearing
Txheej txheem cej luam
320 series paired tapered roller bearing set, X-kev npaj; Cov bearings nrog cov ntaub ntawv steel, lub qhov rais zoo li lub tawb, cov menyuam-guided.X-lub neej; Ib txwm (ISO 492: 2014) kam rau ua chav kawm.
Suffix meaning:
X-Sab nraud qhov ntev sib phim rau cov qauv thoob ntiaj teb
N11CA-ob x txheej tapered menyuam bearings, nrog spacers nruab nrab ntawm lub khob
A450-500-axial clearance hauv µm
Lub taub hau - 240 mm; Sab nraud txoj kab uas hla-360 hli; Dav-152 hli; Mass-58.3 kg;Cr=1820 kN;C0r=3350 kN;Cur=420 kN.Limiting ceev=2150 min–1;Reference speed=870 min–1.
Cov kabmob zoo sib xws No.32048-X-N11CA;32048-X-N11CA-A450-500 kuj muaj nyob hauv Tshuag.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | 32048-X-N11CA-A450-500 - Matched Pairs Tapered Cov Menyuam Bearing |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |

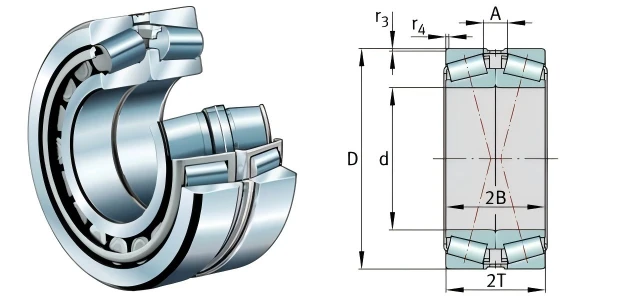

| Main Dimensions | 240 x 360 x 152 mm |
| d | 240 hli |
| D | 360 hli |
| 2B | 152 hli |
| 2T | 152 hli |
| A | 38mm ib |
| da max | 2 61mm |
| r 3, 4m | 3 hli |
| Cr | 1 540 kn |
| C0r | 3350kn ua |
| Cur | 360kn ua |
| Limiting ceev rau roj lubrication | 1680 1/min |
| Kev ntsuas kub ceev | 850 1/min |
| M | 5 8,3kg |
Peb tuaj yeem muab cov ntawv pov thawj hauv qab no
Cim npe nrov: muaj 32048-x-n11ca-a450-500 matched khub tapered menyuam bearing, lwm tus neeg, koom haum, nqe, kev muag khoom
