32236-A-N11CA Nrog Loj 180x320x182 mm Matched Pairs Tapered Cov Menyuam Bearing

Txheej txheem cej luam

322 series khub tapered menyuam bearing teeb, X-kev npaj; Qhov loj me raws li DIN 720, nrog cov ntawv xovxwm steel, qhov rais tawb, cov menyuam-guided.Normal (ISO 492: 2014) kam rau ua chav kawm.

Suffix meaning:
A- Kev Hloov Kho Tsim Kho Sab Hauv
N11CA-Ob X Arranged Tapered Cov Menyuam Bearings, Nrog Spacers Ntawm Lub khob (yav tas los hu ua K11)

Lub taub hau - 180 mm; Sab nraud txoj kab uas hla-320 hli; Dav-182 hli; Mass-61.3 kg;Cr=1730 kN;C0r=3300 kN;Cur=375 kN.Limiting ceev=2 100 min–1;Reference speed=990 min–1.

Similar bearing code No.32236-A-N11CA-A430-480kuj muaj nyob rau hauv Tshuag.

Specifications

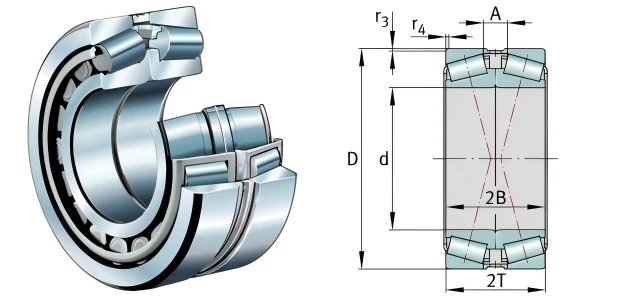

32236-A-N11CA drawing

Dimensions & Technical Datasheets
Tshooj NO.	32236-A-N11CA - Matched Pairs Tapered Cov Menyuam Bearing
Hom	FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb
Main Dimensions	180 x 320 x 182 mm
d	180 mm
D	320 hli
2B	172 hli
2T	1 82mm
A	40 mm
da max	204mm ib
r 3, 4m	4 hli
Cr	1 730 kn
C0r	3300 kN ib
Cur	375kn ua
Limiting ceev rau roj lubrication	2100 1/min
Kev ntsuas kub ceev	990 1/min
M	6 1,3kg

Peb kuj tseem muaj cov khoom siv tib yam

Lub npe	Pawg rau bearing khub m ≈ kg	Qhov ntev						Mounting qhov ntev
		d	D	2B	2T	r3,r4 min.	A	da max.	Da		Ca min.
		d	D	2B	2T	r3,r4 min.	A	da max.	min.	max.	Ca min.
30330 -A-N11CA-A380-430	516	150	320	130	144	4	34	189	273	302	9
31330-X-N11CA	577	150	320	150	164	4	64	181	251	302	9
32330 -A-N11CA	879	150	320	216	228	4	48	184	264	302	12
30332 -A-N11CA	607	160	340	136	150	4	34	201	290	322	9
32332-N11CA UAS	929	160	340	228	242	4	52	190	280	322	12
30334 -A-N11CA	733	170	360	144	160	4	36	213	307	342	9
32334-N11CA UAS	125	170	360	240	254	4	54	208	295	342	12
30236-A-N11CA	36	180	320	104	114	4	28	211	278	302	9
32236-A-N11CA	613	180	320	172	182	4	40	204	267	302	10
32236-A-N11CA-A430-480	613	180	320	172	182	4	40	204	267	302	10
30336-N11CA UAS	837	180	380	150	166	4	38	230	327	362	10
32336-N11CA UAS	128	180	380	252	268	4	56	215	310	362	14
30238-N11CA UAS	419	190	340	110	120	4	28	224	298	322	9
32338-N11CA UAS	164	190	400	264	280	5	62	230	330	377	14
30240 -A-N11CA	529	200	360	116	128	4	32	237	315	342	9
30240 -A-N11CA-A550-600	529	200	360	116	128	4	32	237	315	342	9
32240 -A-N11CA	882	200	360	196	208	4	44	226	302	342	11
32240 -A-N11CA-A400-450	882	200	360	196	208	4	44	226	302	342	11
30340-N11CA UAS	107	200	420	160	178	5	44	250	360	397	10
32340-N11CA UAS	168	200	420	276	292	5	62	240	345	397	14
32044-X-N11CA	494	220	340	152	152	3	38	243	300	326	12
32044-X-N11CA-A300-350	494	220	340	152	152	3	38	243	300	326	12
32244-A-N11CA	123	220	400	216	228	4	48	258	336	382	12
32244-A-N11CA-A400-450	123	220	400	216	228	4	48	258	336	382	12
30344-N11CA UAS	136	220	460	176	194	5	48	274	392	437	10
32048-X-N11CA	583	240	360	152	152	3	38	261	318	346	12
32048-X-N11CA-A450-500	583	240	360	152	152	3	38	261	318	346	12
30248-N11CA UAS	876	240	440	144	158	4	38	285	383	417	10
32248-A-N11CA	166	240	440	240	254	4	54	286	372	422	14
32248-A-N11CA-A450-500	166	240	440	240	254	4	54	286	372	422	14
30348-N11CA UAS	177	240	500	190	210	5	50	296	425	477	12
32052-X-N11CA	775	260	400	174	174	4	44	287	352	382	14
32052-X-N11CA-A500-550	775	260	400	174	174	4	44	287	352	382	14
