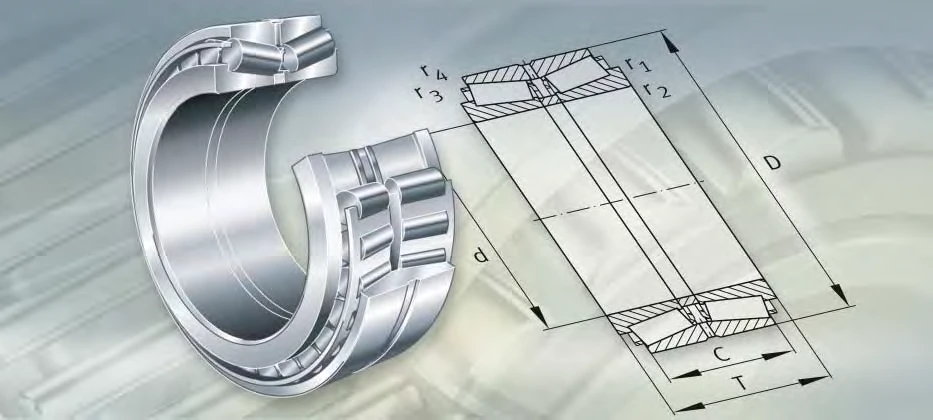

Z-518933.TR2 Nrog Loj 711.2x914.4x149.225 mm Ob Chav Kab Tapered Cov Menyuam Bearing
Txheej txheem cej luam
Siv rau xoob haum ntawm phau ntawv yob, X-kev npaj; Ob chav kab tapered menyuam bearings, tsis muaj cov ntsaws ruaj ruaj; kub ntawm -30℃mus rau +150 degree, nyob ntawm cov roj nplua nyeem; pressed cages ua los ntawm cov ntawv hlau.
Qhov taub-711.2 hli; Sab nraud txoj kab uas hla-914.4 hli; Dav-149.225 hli; Mass-253 kg;Cr=3400 kN;C0r=9500 kN;Cur=750 kN.Could be interchanged with TIMKEN EE755281D.360.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | Z-518933.TR2 - Ob Chav Kab Tapered Cov Menyuam Bearing |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |
| Main Dimensions | 711.2x914.4x149.225 mm |
| d | 7 11.2mm |
| D | 9 14,4mm |
| T | 149.225 hli |
| B | 149.225 hli |
| e | 0.38mm ib |
| r 1, r2m. | 3.3mm ib |
| r 3, 4m | 6.4mm ib |
| Cr | 3400 kN ib |
| C0r | 9500kn ua |
| Cur | 750kn ua |
| M | 253kg ua |
Peb kuj muaj tib hom Bearings
| Lub npe | Tsim | Pawg | Qhov ntev | Basic load ntsuam xyuas | Kev suav lej | Fatigue txwv load Cur |
Interchange npe TSI Types |
|||||||||
| m | d | D | T | B | r¹ ,r₂ | r³ ,T₄ | ua dyn. Cr |
stat. C o r |
e | Y₁ | Y₂ | Y₀ | ||||
| ≈ kg | min. | min. | kN kev | kN kev | kN kev | |||||||||||
| Z-538086.TR2 | 1 | 267 | 6,096 | 820 | 17,145 | 17,145 | 33 | 64 | 3300 | 9300 | 48 | 139 | 207 | 136 | 770 | - |
| F-804575.TR2 | 1 | 709 | 635 | 9,398 | 3,048 | 3,048 | 33 | 64 | 6400 | 15300 | 56 | 12 | 179 | 118 | 一 | |
| F-800501.TR2 | 3 | 746 | 635 | 9,398 | 3,048 | 3,048 | 33 | 64 | 6800 | 16800 | 56 | 12 | 179 | 118 | 1350 | - |
| Z-515897.01.TR2 | 3 | 735 | 657,225 | 93,345 | 328,613 | 328,613 | 33 | 64 | 8900 | 23700 | 33 | 203 | 302 | 198 | 1920 | M281649D.610 |
| Z-568023.TR2 | 3 | 828 | 682,625 | 9,652 | 338,138 | 338,138 | 33 | 64 | 9000 | 25500 | 0.33 | 203 | 302 | 198 | 2050 | M282249DW.210 |
| Z-532828.TR2 | 3 | 320 | 710 | 900 | 197 | 197 | 33 | 64 | 4550 | 13500 | 35 | 195 | 29 | 191 | 1090 | SIB 331581A |
| Z-518933.TR2 | 1 | 253 | 7,112 | 9,144 | 149,225 | 149,225 | 33 | 64 | 3400 | 9500 | 38 | 177 | 263 | 173 | 750 | EE755281D.360 |
| Z-524770.TR2 | 3 | 1440 | 8,255 | 11,684 | 409,575 | 409,575 | 48 | 127 | 12800 | 36500 | 34 | 2 | 298 | 196 | 2750 | M285848D.810 |
| Z-539945.TR2 | 3 | 2000 | 9,017 | 12,954 | 45,085 | 43,815 | 48 | 127 | 16000 | 43000 | 32 | 212 | 315 | 207 | 3150 | EE634356D.510 |
| Z-521872.TR2 | 3 | 2030 | 9,398 | 13,335 | 46,355 | 46,355 | 48 | 127 | 16000 | 45000 | 0.33 | 203 | 302 | 198 | |- | LM287849DW.810 |
