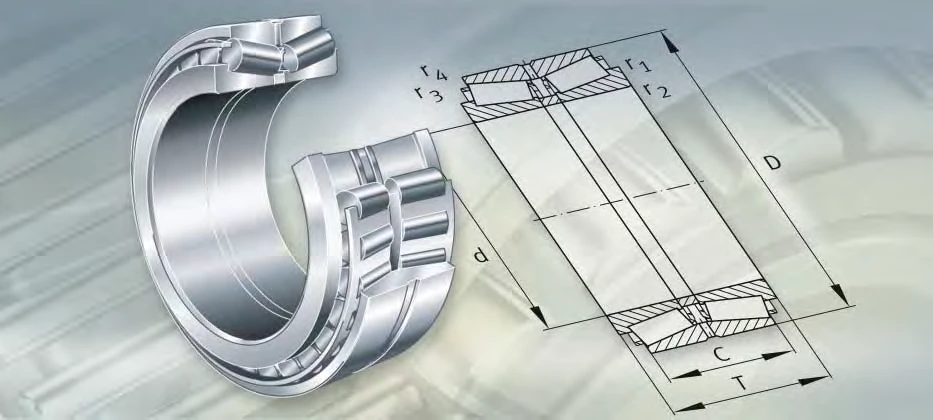

Z-542129.TR2 Nrog Loj220.13x336.55x244.475mm Ob Chav Kab Tapered Cov Menyuam Bearing
Txheej txheem cej luam
Nrog ob lub nplhaib sab nraud thiab ib lub nplhaib txuas ntxiv thiab 1:12 tapered bore taper, ob npaug -kab tapered roller bearings hauv X-kev npaj; tsis muaj cov ntsaws ruaj ruaj; kub ntawm -30℃mus rau +150 degree, nyob ntawm cov roj nplua nyeem; pressed cages ua los ntawm cov ntawv hlau.
Qhov taub - 220.13 hli; Sab nraud txoj kab uas hla-336.55 hli; Dav-244.475 hli; Mass-70.4 kg;Cr=1860 kN;C0r=4200 kN;Cur=465 kN.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | Z-542129.TR2 - Ob Chav Kab Tapered Cov Menyuam Bearing |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |
| Main Dimensions | 220.13 x 336.55 x 244.475 mm |
| d | 220.13 hli |
| d1 | 205.049 hli |
| D | 336.55mm 3 |
| T | 180.975 hli |
| B | 244.475 hli |
| e | 0.35mm ib |
| r 1, r2m. | 1.5 hli |
| r 3, 4m | 3.3mm ib |
| Cr | 1860 kN ib |
| C0r | 4200 kN ib |
| Cur | 465kn ua |
| M | 7 0,4kg |
Ntau Yam Kev Xaiv Cov Kabmob
| Lub npe | Tsim | Pawg m ≈ kg |
Qhov ntev | |||||
| d | d₁ | D | T | B | r1,r2 min. |
|||
| Z-535082.TR2 | 5 | 70 | 20,889 | 188,517 | 33,655 | 180,975 | 244,475 | 15 |
| Z-539084.TR2 | 5 | 58 | 219,605 | 206,243 | 33,655 | 16,034 | 22,383 | 15 |
| Z-548244.TR2 | 4 | 513 | 220 | 一 | 340 | 140 | 200 | 15 |
| Z-564232.TR2 | 51) | 55 | 220 | 215,333 | 340 | 140 | 200 | 15 |
| Z-542129.TR2 | 5 | 704 | 22,013 | 205,049 | 33,655 | 180,975 | 244,475 | 15 |
| Z-539574.TR2 | 5 | 77 | 230 | 216,658 | 370 | 160 | 2,235 | 3 |
| Z-535081.TR2 | 4 | 525 | 269,875 | 一 | 381 | 136,525 | 19,685 | 33 |
| Z-542146.TR2 | 5 | 56 | 27,239 | 255,985 | 381 | 136,525 | 19,685 | 15 |
| Z-544753.TR2 | 5 | 170 | 280 | 261,666 | 460 | 220 | 280 | 1 |
| Z-548243.TR2 | 4 | 74 | 288,925 | 一 | 4,064 | 1,651 | 23,495 | 15 |
| Z-564231.TR2 | 51) | 76 | 288,925 | 283,422 | 4,064 | 1,651 | 23,495 | 15 |
| Z-539576.TR2 | 5 | 92 | 3,175 | 304,271 | 447,675 | 159,512 | 22,225 | 33 |
| F-803981.TR2 | 42) | 117 | 325 | 一 | 4,699 | 182,563 | 24,765 | 15 |
| Z-548242.TR2 | 4 | 100 | 333,375 | 一 | 4,699 | 166,688 | 231,775 | 15 |
| Z-564230.TR2 | 51) | 102 | 333,375 | 327,819 | 4,699 | 166,688 | 231,775 | 15 |
| Z-541965.TR2 | 5 | 115 | 333,375 | 318,161 | 4,699 | 182,563 | 24,765 | 15 |
| Z-544754.TR2 | 5 | 228 | 340 | 321,666 | 520 | 220 | 280 | 1 |
