F-802007.TR4-H122AG Sealed Plaub Kab Tapered Cov Menyuam Bearing Nrog Loj 482.6x615.95x330.2 mm
Txheej txheem cej luam

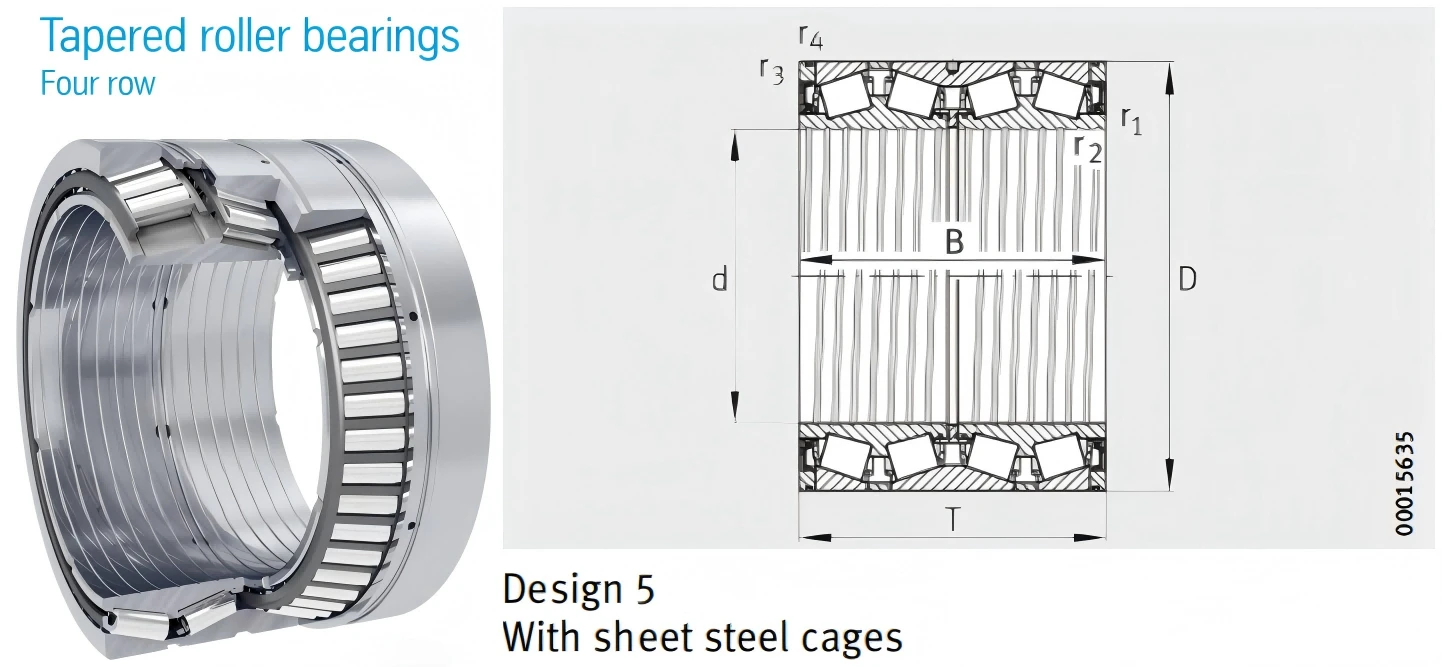

Tsim 5
Lub nplhaib sab nrauv muaj ob lub nplhaib thiab ob lub nplhaib ib leeg.
■ Lub nplhaib puab sab hauv muaj qhov helical zawj.
■ Cov bearings muaj cov ntawv hlau tawb.
■ Daim Ntawv Thov:
- Siv nyob rau hauv steel dov mills, roj drilling khoom, thiab hnyav ntauwd cranes.
Suffix meaning:
TR4- Plaub-kab tapered menyuam bearing.
H122AG-Kev cai dov zeb sib txawv thiab sib xyaw ua ke ntawm ob sab kom tiv thaiv cov roj nplua nyeem thiab tiv thaiv kev sib kis.
kaw plaub-kab tapered menyuam bearings; Nrog cov ntawv hlau tawb, qhov rai tawb, cov menyuam - coj; Seals ntawm ob sab; TQO kev; Chav kawm kam rau ua: ABMA4, Chav Kawm 4 (ANSI/ABMA 19.2: 2013); Kev kho cua sov: Standard.
Lub taub hau - 482.6 mm; Sab nraud txoj kab uas hla-615.95 hli; Dav-330.2 hli; Mass-233 kg;Cr=5200 kN;C0r=12200 kN.
Nws zoo sib xws code no .:F-802007.TR4-H122BH;F-802007.TR4-D1-H122AFkuj muaj nyob rau hauv Tshuag rau koj ntau industrial tov.
Specifications
| Dimensions & Technical Datasheets | |
| Tshooj NO. | F-802007.TR4-H122AG - Plaub Kab Tapered Cov Menyuam Bearing |
| Hom | FAG ua nyob rau hauv GERMANY thiab SDVV / ZBM hom ua nyob rau hauv Suav teb |
| Main Dimensions | 482.6x615.95x330.2 hli |
| d | 4 82.6mm |
| D | 6 15.95mm |
| T | 330.2mm 3 |
| B | 330.2mm 3 |
| e | 0.36mm ib |
| r 1, r2m. | 6.4mm ib |
| r 3, 4m | 3.3mm ib |
| Cr | 5 200 kN |
| C0r | 12 200 KN |
| Cur | kN kev |
| M | 233kg ua |
Daim duab Bearing Real
